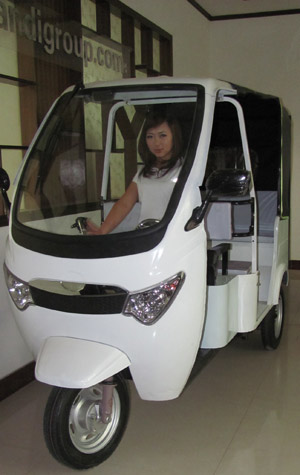

| Vehicle Name |
P4 |
| The total mass |
350kg |
| Rated contained mass |
320kg |
| Wheelbase (mm) |
1900 |
| Track (rear) (mm) |
810 |
| Battery Type |
5*120AH |
| Charge time |
10~12h |
| Maximum speed |
35~40km/h |
| Outline dimension (mm) |
2600*1060*1800 |
| Minimum ground clearance |
210mm |
| Max climbing angle(＜) |
20~30 |
| Max mileage (km) |
120 |
| Motor parameters |
60V 1000W |
| Transmission |
Chain/shaft drive |
| Steering type |
Handle bar/steering wheel |
| Tire size |
400-12 |
| Min turning circle diameter |
5000mm |
|
 |

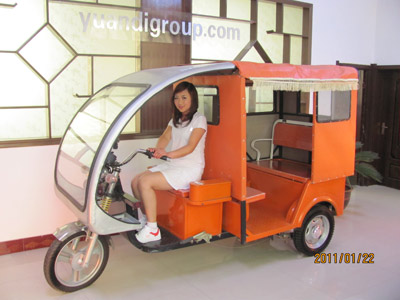

| Vehicle Name |
P3 |
| The total mass |
365kg |
| Rated contained mass |
320kg |
| Wheelbase (mm) |
2100 |
| Track (rear) (mm) |
810 |
| Battery Type |
5*120AH |
| Charge time |
10~12h |
| Maximum speed |
35~40km/h |
| Outline dimension (mm) |
2850*1050*1790 |
| Minimum ground clearance |
250mm |
| Max climbing angle(＜) |
20~30 |
| Max mileage (km) |
120 |
| Motor parameters |
60V 1000W |
| Transmission |
Chain/shaft drive |
| Steering type |
Handle bar/steering wheel |
| Tire size |
325-16/400-12 |
| Min turning circle diameter |
6200mm |
|
 |

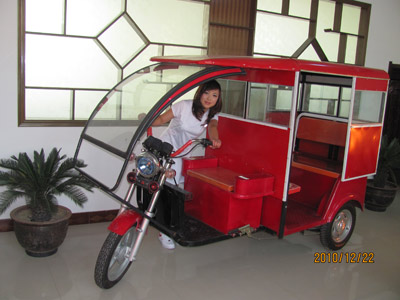

| Vehicle Name |
P2 |
| The total mass |
365kg |
| Rated contained mass |
320kg |
| Wheelbase (mm) |
2100 |
| Track (rear) (mm) |
810 |
| Battery Type |
5*120AH |
| Charge time |
10~12h |
| Maximum speed |
35~40km/h |
| Outline dimension (mm) |
2850*1050*1770 |
| Minimum ground clearance |
250mm |
| Max climbing angle(＜) |
20~30 |
| Max mileage (km) |
120 |
| Motor parameters |
60V 1000W |
| Transmission |
Chain/shaft drive |
| Steering type |
Handle bar/steering wheel |
| Tire size |
325-16/400-12 |
| Min turning circle diameter |
6200mm |
|
 |

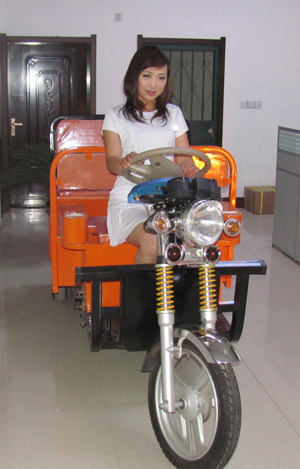

| Vehicle Name |
P1 |
| The total mass |
325kg |
| Rated contained mass |
360kg |
| Wheelbase (mm) |
2100 |
| Track (rear) (mm) |
810 |
| Battery Type |
5*120AH |
| Charge time |
10~12h |
| Maximum speed |
35~40km/h |
| Outline dimension (mm) |
2810*1050*1250 |
| Minimum ground clearance |
250mm |
| Max climbing angle(＜) |
20~30 |
| Max mileage (km) |
120 |
| Motor parameters |
60V 1000W |
| Transmission |
Chain/shaft drive |
| Steering type |
Handle bar/steering wheel |
| Tire size |
325-16/400-12 |
| Min turning circle diameter |
7000mm |
|
